2016 2 Pins SAW Resonator With 433.92MHz ±100KHz 2.2dB

Brand Name : SJK

Model Number : SJK-SR434-2016-A6

Certification : SGS, RoHS, REACH

Place of Origin : China

MOQ : 4000pcs

Price : negotiable

Payment Terms : T/T

Supply Ability : 30Kpcs per Month

Delivery Time : 2-3 wks

Packaging Details : 4Kpcs/Reel

Model : 2016 SAW Resonator

Frequency : 304.45~433.92

Frequency Tolerance : ±100KHz

Insertion Loss : 2.2dB Max.

Size : 2.0x1.6x0.9mm

Contact Now

2016 2 Pins SAW Resonator With 433.92MHz ±100KHz

Features

1-Port SAW Resonator

CSP Package for SMT

Package Size 2.0x1.6x0.9 mm

Electrostatic Sensitive Device

Application: Automotive Electronics, Remote Control, Security Alarm, etc.

RoHS Compliant & Pb Free

Specifications

Item		Minimum	Typical	Maximum	Unit
Center Frequency	Absolute Frequency	315, 433.92, or other frequency			MHz
Center Frequency	Frequency Tolerance		±100		KHz
Insertion Loss (Min.)			1.3	2.2	dB
Quality Factor	Unloaded Q		12000
Quality Factor	50Ω loaded Q		1500
Temperature Stability	Turnover Temperature	10	25	40	℃
	Turnover Frequency		Fc
	Frequency Temperature Coefficient		0.032		ppm/℃
Frequency Aging	Absolute Value During The First Year		≦10		ppm/yr
DC Insulation Resistance Between Any Two Pins		1.0			MΩ
RF Equivalent RLC Model	Motional Resistance		12.196	18	Ω
	Motional Inductance		183.82	110.2	μH
	Motional Capacitance		0.733		fF
	Static Capacitance	1.45	2.23	2.05	pF
Operating Temperature		-40		+85	℃
Storage Temperature		-55		125	℃
DC Voltage			10		V

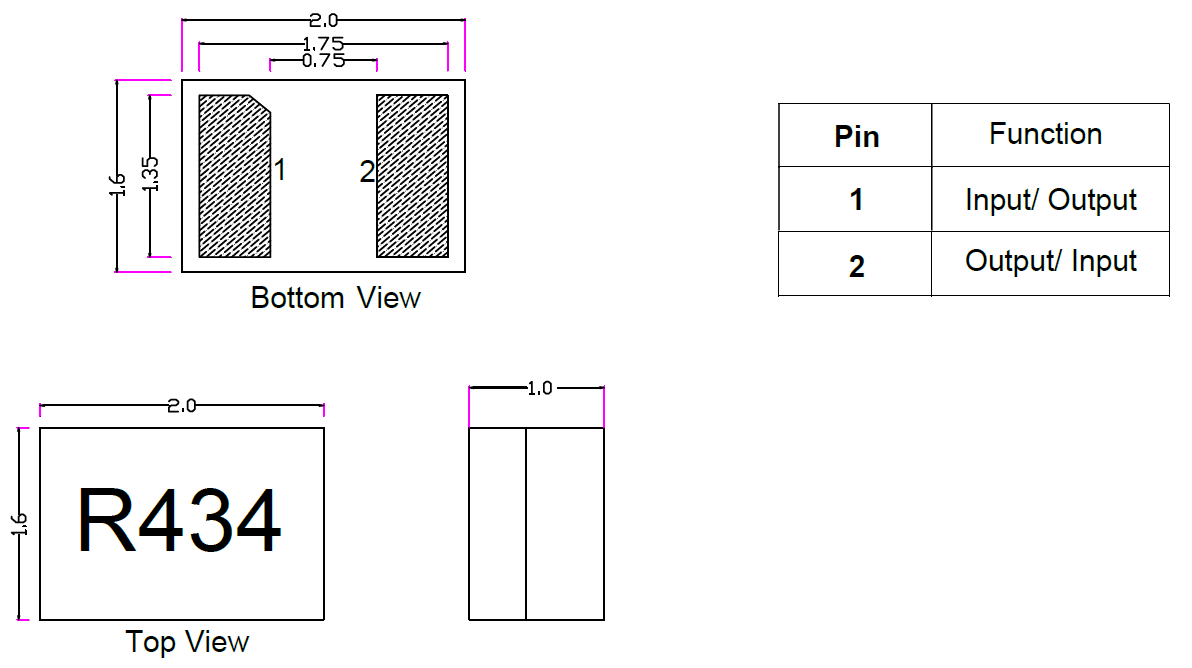

Dimensions [mm]

2016 2 Pins SAW Resonator With 433.92MHz ±100KHz 2.2dB
